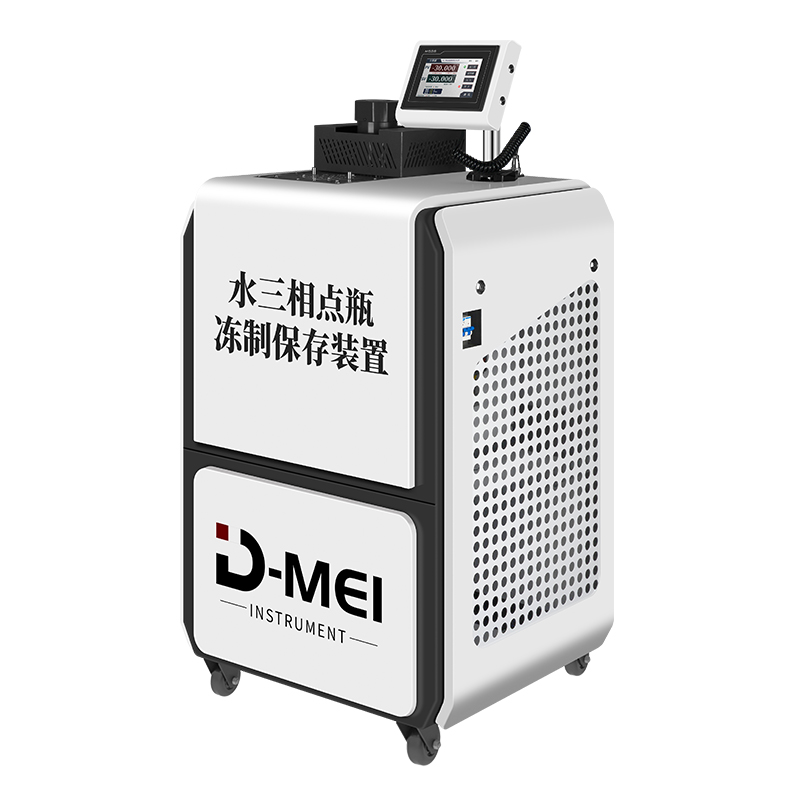

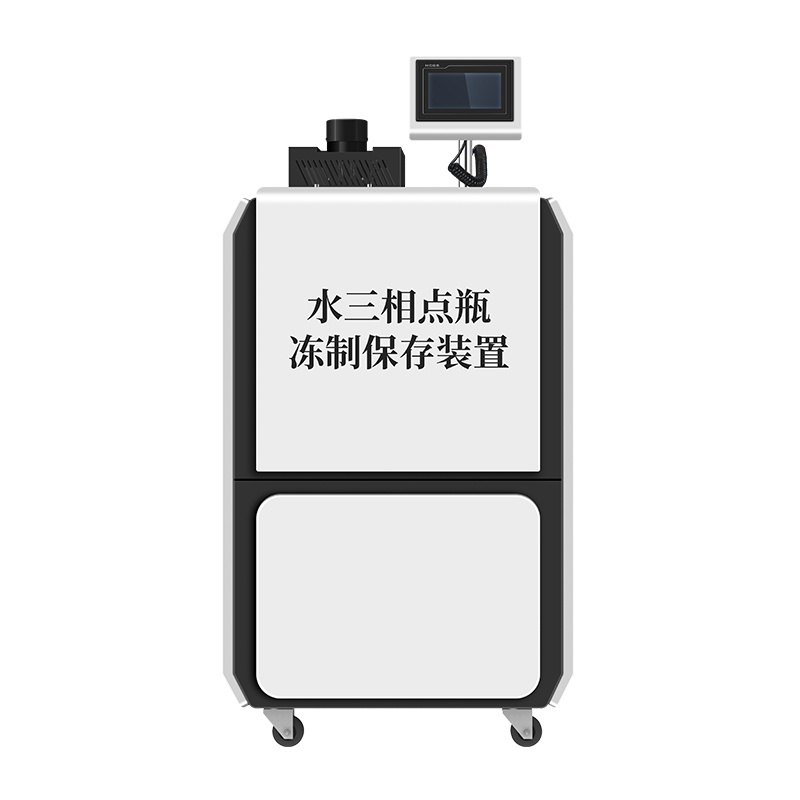

DY-05 water triple point bottle freezing storage device has the function of one tank three uses (1. Water triple point bottle freezing, 2. Preservation of water triple point bottle, 3. Refrigeration constant temperature tank).
The device adopts imported refrigerating machine with low noise, good reliability and long service life. The high precision temperature controller realizes the automatic control of freezing and preservation, with compact structure, easy operation and direct reading of tank temperature.
It is suitable for measurement, biochemical, petroleum, meteorology, energy, environmental protection, medicine and other departments and manufacturers of thermometers, temperature controller and other physical parameters testing, and can provide constant temperature source for other experimental research work.
[Product Features]
1. man-machine interface, Chinese display, touch operation, beautiful and generous.
2. Temperature control curve, automatically according to the preset curve temperature control.
3. After freezing, no need to take it out and shake. Alarm prompts, it can be automatically transferred to the storage state, safe and convenient.
4. Special frozen support for triple point bottle.
5. timing switch machine, save working time;
Support a variety of automatic protection to ensure the safety of the system.
6. a multi-purpose tank, that is, can be used as water triple point bottle freezing storage device, can also be used as a refrigeration thermostatic tank.
[Technical indicators]
Model
DY-05
Temperature Range
-10℃~90℃
Temperature Fluctuations
≤0.02℃/10min
Temperature Uniformity
Horizontal temperature field 0.01℃，Vertical temperature field 0.02℃
Freezing Time
1200min
Storage Time
≥4h
Operation Mode
7-inch Touch Screen Operation
Working medium
Anhydrous Ethanol
Work area size
φ130×480（mm）
Volume
18L
Freezing Quantity
1 (piece)
Default Display
Chinese display, Full-color LCD
Freezing preservation
shaking out of disorder after freezing completion, alarm prompt, can be automatically transferred to the preservation state, safe and convenient
Ambient temperature
20℃±5℃
Total Power
2KW
Power Supply
220V AC 50HZ
Appearance Size(mm)
700×540×1100
Weight
90KG
